The Mosel SEL40BE 6Nm Curtain Motor is designed for use in roller and zebra blind systems, featuring quiet operation and high efficiency. Offered under the model number SEL40S-6/28, this motor delivers powerful and fast performance with 6Nm torque and a rotation speed of 28 rpm.

Operating at 230V, the motor has a maximum lifting capacity of up to 15 kg (e.g., can lift up to 15 kg for a 1.5-meter curtain, including friction margin). With an IP44 protection rating, it is resistant to dust and water splashes. Its 4-minute operating time and 30-turn maximum rotation capacity make it suitable for long-term use.

Technical Specifications:

• Model: SEL40S-6/28
• Torque: 6 Nm
• Speed: 28 rpm
• Operating Voltage: 230V / 50Hz
• Motor Diameter: 40 mm
• Power Consumption: 121 W
• Current: 0.53 A
• Protection Class: IP44
• Operating Time: 4 minutes
• Maximum Rotation: 30 turns

Lifting Capacity:

• 1.5 m = 15 kg
• 2.0 m = 13 kg
• 2.5 m = 11 kg
• 3.0 m = 10 kg

Cable Color Coding:

• Blue: Neutral
• Black: Direction 1
• Brown: Direction 2
• Green/Yellow: Ground

Package Includes:

• Motor
• Motor Bracket

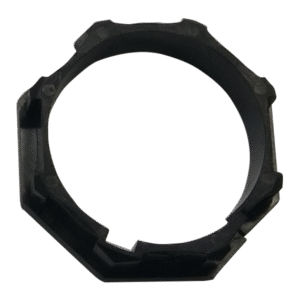

• Switch Ring
• Adapter

The Mosel SEL40BE motor can be integrated into roller and zebra blind systems in homes, offices, and commercial spaces. Its high performance, long lifespan, and quiet operation make it an ideal choice for motorized curtain systems.
