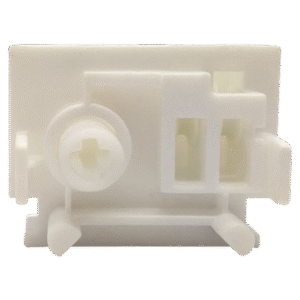

What is a Vertical Blind High-Profile Headrail Mechanism and What Does It Do?

In vertical blinds, the headrail mechanism controls the rotation (tilt) of the slats (vanes) and the stacking of the blinds to the right or left. It is designed for compatibility with high-profile aluminum rails measuring approx. 3 cm in height and 4.5 cm in width. This spare part combines chain-operated tilting and cord-operated stacking in a single unit, offering easy installation and practical maintenance.
Product Code: DPY0001

Key Advantages

• Chain tilt + cord stacking for precise control with smooth and quiet operation.

• Full compatibility with 3 cm high and 4.5 cm wide high-profile rails, quick adaptation to existing systems.

Compatible Systems

DPY0001 works with PVC, sheer, and fabric vertical blind systems that use aluminum profiles around 3 cm in height and 4.5 cm in width (high-profile). For profiles of different heights, a different headrail mechanism is required.

Installation Guide (Step by Step)

1. Close the blind; loosen the chain and cord.

2. Remove the old headrail mechanism from the profile.

3. Insert the new DPY0001 into the profile channel and secure it.

4. Guide the stacking cord through the channel and connect it to the carriers.

5. Place the tilt chain into the gear group and close both ends with a connector.

6. Rotate the slats and stack the blind to test movement; adjust cord–chain tension.
   💡 Tip: Avoid leaving burrs/dirt inside the profile; excessive lubrication may attract dust.

Maintenance & Troubleshooting

• Chain not rotating: Check and clean the chain gear and chain.

• Difficult stacking: Inspect cord path and carrier tracks.

• Noisy operation: Check the profile and moving parts; apply very light lubrication if needed.

FAQ

Does this work with all vertical blinds?
• Only with high-profile systems (~3 cm high × 4.5 cm wide). Different profiles need different mechanisms.

Can I use my existing chain/cord?
• In most cases yes, but replace them if worn.

Can I change the stacking direction?
• Yes, during installation by adjusting the cord–chain route. For single-draw systems, the opening direction is set during assembly.

Compatible Parts

This mechanism is designed for use with star-shaped tilt rods. Ensure your tilt rod matches (not cross-shaped). Also check the headrail end bracket; replace it if damaged.

Can be used together with carrier set, tilt chain, stacking cord, “donkey” (front carrier), hangers/clips, and spacers.

📦 Package includes: 1 × Headrail Mechanism (chain/cord not included, must be ordered separately).
